Commodity name： Thicker Seamless Steel Pipe

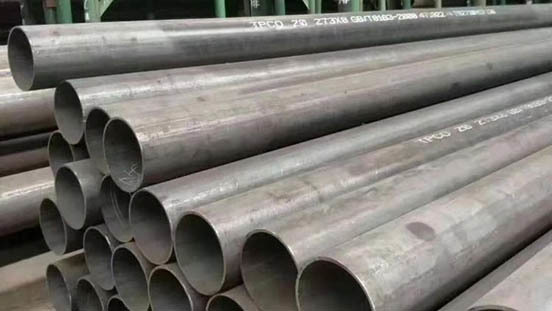

Thicker Seamless Steel Pipe

Construction and decoration field, cooking equipment, kitchenwares, household appliances, food processing equipment, hospital surgical equipment, shipbuilding, oil industry, refrigeration equipment, papermaking industry, pressure vessel, chemical equipment, bridge construction, textile printing and dyeing equipment.

Category:

Product

keyword:

E-mail:

15165397177@163.com

Get a Quote

Products Detail

Product introduction

Structural Steel Pipe

Pipe Type: Structural Pipe, Structural Seamless Pipe, Seamless Structural Pipe
Application: In Structural Engineering and Construction Industry

Specification: OD: 1/8'' ~ 26'' (10.3 ~ 660mm)

WT: SCH 10 ~ 160, SCH STD, SCH XS, SCH XXS

LENGTH: Fixed Length (5.8/6/11.8/12mtr), SRL, DRL

Standard: ASTM A53/A252/A500/A501, JIS G3444, EN 10210/10219

Ends: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends

Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating

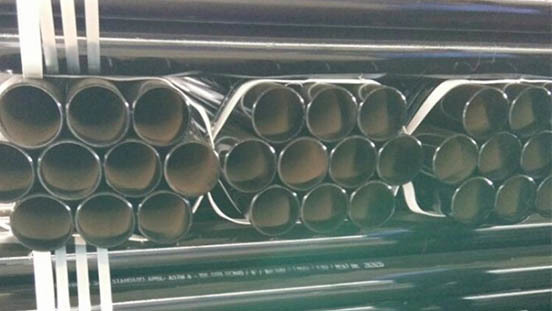

Packing: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped

Specification of Structural Steel Pipe

API 5L/ASTM A106 GR.B, Structural Steel Pipe
DN	OD(mm)	SCH40(6m/5.8m)	SCH40(6m/5.8m)	SCH40(6m/5.8m)
		SCH40(6m/5.8m)	SCH40(6m/5.8m)	SCH40(6m/5.8m)
		WT	WT	WT
		(mm)	(mm)	(mm)
1/4''	13.7	2.24	3.02	/
3/8''	17.1	2.31	3.2	/
1/2''	21.3	2.77	3.73	4.78
3/4''	26.7	2.87	3.91	5.56
1''	33.4	3.38	4.55	6.35
1-1/4''	42.2	3.56	4.85	6.35
1-1/2''	48.3	3.68	5.08	7.14
2''	60.3	3.91	5.54	8.74
2-1/2''	73	5.16	7.01	9.53
3''	88.9	5.49	7.62	11.13
3-1/2''	101.6	5.74	8.08	/
4''	114.3	6.02	8.56	13.49
5''	141.3	6.55	9.53	15.88
6''	168.3	7.11	10.97	18.26
8''	219.1	8.18	12.7	23.01
10''	273	9.27	15.09	28.58
12''	323.8	10.31	17.48	33.32
14''	355.6	9.53	11.13	19.05
16''	406.4	9.53	12.7	21.44
18''	457	9.53	14.27	23.83
20''	508	9.53	15.09	26.19
24''	610	9.53	17.48	30.96

Technical data

Structural Steel Pipe Chemical Composition and Mechanical Properties

Standard	Grade	Chemical Composition (%)					Mechanical Properties
ASTM A53	Grade	C	Si	Mn	P	S	Tensile STrength(Mpa)	Yield STrength(Mpa)
	A	≤0.25	-	≤0.95	≤0.05	≤0.06	≥330	≥205
	B	≤0.30	-	≤1.2	≤0.05	≤0.06	≥415	≥240
ASTM A106	A	≤0.30	≥0.10	0.29-1.06	≤0.035	≤0.035	≥415	≥240
ASTM A106	B	≤0.35	≥0.10	0.29-1.06	≤0.035	≤0.035	≥485	≥275
ASTM A179	A179	0.06-0.18	-	0.27-0.63	≤0.035	≤0.035	≥325	≥180
ASTM A192	A192	0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035	≥325	≥180
API 5L PSL1	A	0.22	-	0.90	0.030	0.030	≥331	≥207
	B	0.28	-	1.20	0.030	0.030	≥414	≥241
	X42	0.28	-	1.30	0.030	0.030	≥414	≥290
	X46	0.28	-	1.40	0.030	0.030	≥434	≥317
	X52	0.28	-	1.40	0.030	0.030	≥455	≥359
	X56	0.28	-	1.40	0.030	0.030	≥490	≥386
	X60	0.28	-	1.40	0.030	0.030	≥517	≥448
	X65	0.28	-	1.40	0.030	0.030	≥531	≥448
	X70	0.28	-	1.40	0.030	0.030	≥565	≥483
API 5L PSL2	B	0.24	-	1.20	0.025	0.015	≥414	≥241
	X42	0.24	-	1.30	0.025	0.015	≥414	≥290
	X46	0.24	-	1.40	0.025	0.015	≥434	≥317
	X52	0.24	-	1.40	0.025	0.015	≥455	≥359
	X56	0.24	-	1.40	0.025	0.015	≥490	≥386
	X60	0.24	-	1.40	0.025	0.015	≥517	≥414
	X65	0.24	-	1.40	0.025	0.015	≥531	≥448
	X70	0.24	-	1.40	0.025	0.015	≥565	≥483
	X80	0.24	-	1.40	0.025	0.015	≥621	≥552
